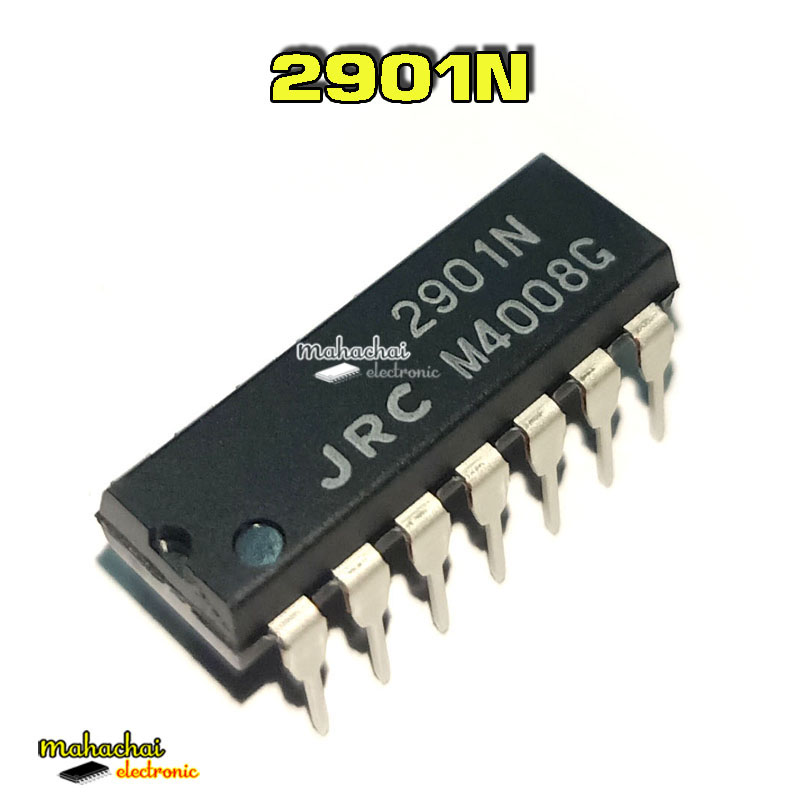

2901N 14–Pin Plastic Dual In-Line Package (DIP)
มาเป็นคนแรกที่รีวิวพรีเมี่ยมสินค้านี้
รายละเอียดครบ
(รอ)
ตรงกับหน้าเว็บ
(รอ)
ราคาคุ้มค่า
(รอ)
คุณภาพสินค้า
(รอ)
ไฮไลท์
2901N
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า

ic ไอซี 2901N

ดาวโหลด  Datasheet


DESCRIPTION
The LM139 series consists of four independent precision voltage comparators, with an offset voltage specification as low as 2.0mV max for each comparator, which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common–mode voltage range includes ground, even though they are operated from a single power supply voltage. The LM139 series was designed to directly interface with TTL and
CMOS. When operated from both plus and minus power supplies, the LM139 series will directly interface with MOS logic where their low power drain is a distinct advantage over standard comparators.

FEATURES
• Wide single supply voltage range 2.0VDC to 36VDC or dual
supplies ±1.0VDC to ±18VDC
• Very low supply current drain (0.8mA) independent of supply
voltage (1.0mW/comparator at 5.0VDC)
• Low input biasing current 25nA
• Low input offset current ±5nA and offset voltage
• Input common–mode voltage range includes ground
• Differential input voltage range equal to the power supply voltage
• Low output 250mV at 4mA saturation voltage
• Output voltage compatible with TTL, DTL, ECL, MOS and CMOS
logic systems
APPLICATIONS
• A/D converters
• Wide range VCO
• MOS clock generator
• High voltage logic gate
• Multivibrators
